型号 | 通道 | 输出电压(V) | 输出电流(A) | 输出功率(kW) | 分辨率 | 设置精度 | 纹波与噪声 | 通讯接口 | 工作电压 | 尺寸(U) | 重量(kg) |
---|---|---|---|---|---|---|---|---|---|---|---|

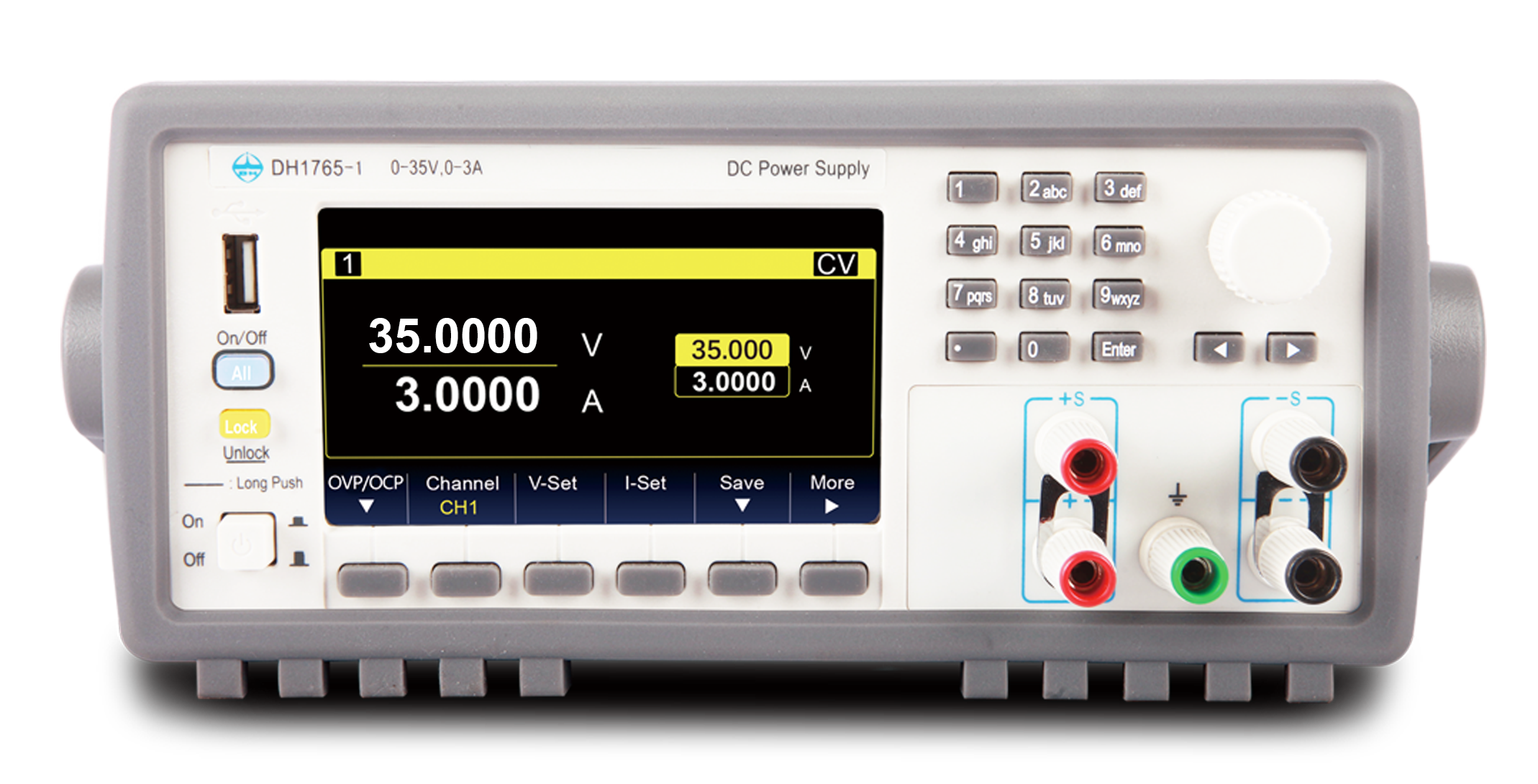

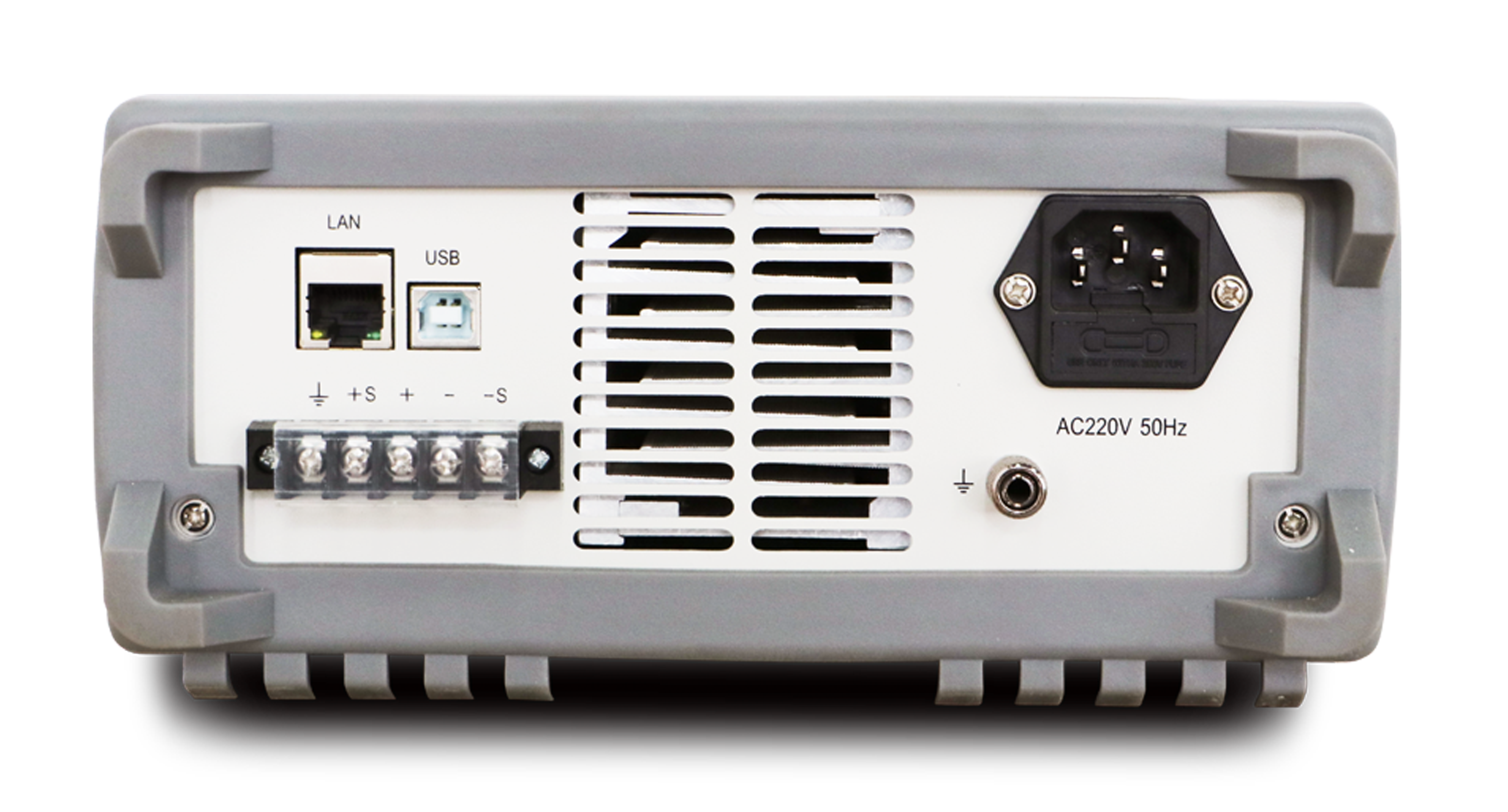

DH1765-1 | 单通道 | 35 | 3 | 0.11 | 1mV/1mA | 0.01% +10mV/0.05% +10 mA | 1mVrms/2mArms | 标配USB、LAN | 220Vac±10%,50Hz±5% | 2U | 10kg |
DH1765-2 | 单通道 | 35 | 6 | 0.21 | 1mV/1mA | 0.01% +10mV/0.05% +10 mA | 1mVrms/2mArms | 标配USB、LAN | 220Vac±10%,50Hz±5% | 2U | 10kg |
DH1765-3 | 单通道 | 75 | 3 | 0.19 | 5mV/1mA | 0.01% +10mV/0.05% +10 mA | 1mVrms/2mArms | 标配USB、LAN | 220Vac±10%,50Hz±5% | 2U | 10kg |
DH1765-4 | 单通道 | 150 | 1 | 0.18 | 5mV/1mA | 0.01% +10mV/0.05% +10 mA | 1mVrms/2mArms | 标配USB、LAN | 220Vac±10%,50Hz±5% | 2U | 10kg |
DH1765-1 | 单通道 | 35 | 3 | 0.11 | 1mV/1mA | 0.01% +10mV/0.05% +10 mA | 1mVrms/2mArms | 标配USB、LAN | 220Vac±10%,50Hz±5% | 2U | 10kg |
DH1765-2 | 单通道 | 35 | 6 | 0.21 | 1mV/1mA | 0.01% +10mV/0.05% +10 mA | 1mVrms/2mArms | 标配USB、LAN | 220Vac±10%,50Hz±5% | 2U | 10kg |
DH1765-3 | 单通道 | 75 | 3 | 0.19 | 5mV/1mA | 0.01% +10mV/0.05% +10 mA | 1mVrms/2mArms | 标配USB、LAN | 220Vac±10%,50Hz±5% | 2U | 10kg |
DH1765-4 | 单通道 | 150 | 1 | 0.18 | 5mV/1mA | 0.01% +10mV/0.05% +10 mA | 1mVrms/2mArms | 标配USB、LAN | 220Vac±10%,50Hz±5% | 2U | 10kg |
